#1 Spring Framework Legacy 시작

2023-05-29

1. New -> Spring Legacy Project

Project name : SpringLegacy 입력
Templates : Spring MVC Project 선택
NEXT 클릭

Package : kr.co.springlegacy (kr.co.회사이름) 입력
NEXT 클릭

JAVA Version : 11 선택
RunTimes : Apache Tomcat v9.0 선택
Apply and close 클릭

3. pom.xml (Spring Framework 버전 최신화)

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>kr.co</groupId>
	<artifactId>springlegacy</artifactId>
	<name>SpringLegacy</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>11</java-version>
		<org.springframework-version>5.3.27</org.springframework-version>
		<org.aspectj-version>1.9.19</org.aspectj-version>
		<org.slf4j-version>2.0.7</org.slf4j-version>
	</properties>
	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				 </exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- AspectJ -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${org.aspectj-version}</version>
		</dependency>

		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.15</version>
			<exclusions>
				<exclusion>
					<groupId>javax.mail</groupId>
					<artifactId>mail</artifactId>
				</exclusion>
				<exclusion>
					<groupId>javax.jms</groupId>
					<artifactId>jms</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jdmk</groupId>
					<artifactId>jmxtools</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jmx</groupId>
					<artifactId>jmxri</artifactId>
				</exclusion>
			</exclusions>
			<scope>runtime</scope>
		</dependency>

		<!-- @Inject -->
		<dependency>
			<groupId>javax.inject</groupId>
			<artifactId>javax.inject</artifactId>
			<version>1</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.13.2</version>
			<scope>test</scope>
		</dependency>
	</dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <additionalProjectnatures>
                        <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
                    </additionalProjectnatures>
                    <additionalBuildcommands>
                        <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
                    </additionalBuildcommands>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.10.1</version>
                <configuration>
                    <source>11</source>
                    <target>11</target>
                    <compilerArgument>-Xlint:all</compilerArgument>
                    <showWarnings>true</showWarnings>
                    <showDeprecation>true</showDeprecation>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>1.2.1</version>
                <configuration>
                    <mainClass>org.test.int1.Main</mainClass>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

properties
- java-version : 11 수정
- org.springframework-version : 5.3.27수정
- org.aspectj-version : 1.9.19 수정
- org.slf4j-version : 2.0.7 수정
junit : 4.13.2수정
org.apache.maven.plugins
- version : 3.10.1 수정
- source : 11 수정
- target : 11 수정

4. Tomcat의 server.xml

<Context docBase="SpringLegacy" path="/springlegacy" reloadable="true" source="org.eclipse.jst.jee.server:SpringLegacy"/></Host>

path : /springlegacy 유지
예) path를 /springlegacy에서 /로 수정시 웹 애플리케이션의 URL이 localhost:8080/springlegacy에서 localhost:8080/로 변경 됨.

Tomcat까지 설정후 Tomcat 서버 Start 후 localhost:8080/springlegacy접속

5. web.xml

기존 root-context.xml & servlet-context.xml 삭제 후 재생성
(삭제하지 않고 그대로 사용해도 괜찮습니다.)

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee https://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

	<!-- context-param -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:applicationContext.xml</param-value>
	</context-param>

	<!-- Listener -->
	<listener>
		<listener-class> org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- Context -->
	<servlet>
		<servlet-name>appServlet</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>/WEB-INF/config/presentation-layer.xml</param-value>
		</init-param>
	</servlet>
	<servlet-mapping>
		<servlet-name>appServlet</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<!-- encodingFilter -->
	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter
		</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

</web-app>

<context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
</context-param>

모든 서블릿과 필터 사이에서 공유되는 루트 스프링 컨테이너를 정의합니다.
스프링 컨테이너는 스프링 프레임워크에서 애플리케이션의 객체를 관리하고 의존성 주입(Dependency Injection)을 수행하는 역할을 담당합니다.
루트 스프링 컨테이너는 웹 애플리케이션 내에서 모든 서블릿과 필터가 공유하는 컨테이너입니다.

<listener>
    <listener-class> org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>

모든 서블릿과 필터가 공유하는 스프링 컨테이너를 생성하는 역할을 합니다.
서블릿과 필터는 웹 애플리케이션의 요청을 처리하기 위해 스프링 컨테이너의 빈(Bean)을 사용합니다.
리스너는 스프링 컨테이너를 생성하여 모든 서블릿과 필터가 공유할 수 있도록 준비하는 단계를 나타냅니다.

<servlet>
    <servlet-name>action</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/config/presentation-layer.xml</param-value>
    </init-param>
</servlet>
<servlet-mapping>
    <servlet-name>action</servlet-name>
    <url-pattern>*.do</url-pattern>
</servlet-mapping>

애플리케이션의 요청을 처리하는 단계이며 스프링 컨테이너가 요청을 적절하게 처리할 수 있도록 돕는 역할을 합니다.
스프링 기반 웹 애플리케이션에서는 서블릿과 필터가 요청을 처리하고, 해당 요청을 스프링 컨테이너로 전달하여 필요한 처리를 수행합니다.

<filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter
    </filter-class>
    <init-param>
        <param-name>encoding</param-name>
        <param-value>UTF-8</param-value>
    </init-param>
</filter>
<filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

스프링 웹 애플리케이션에서 문자 인코딩 필터를 설정합니다.
encodingFilter를 설정함으로써 요청과 응답의 문자 인코딩을 일관되게 처리할 수 있습니다.

applicationContext.xml & spring-context.xml 생성

Twitter Facebook LinkedIn

#1 Spring Framework Legacy 시작

1. New -> Spring Legacy Project

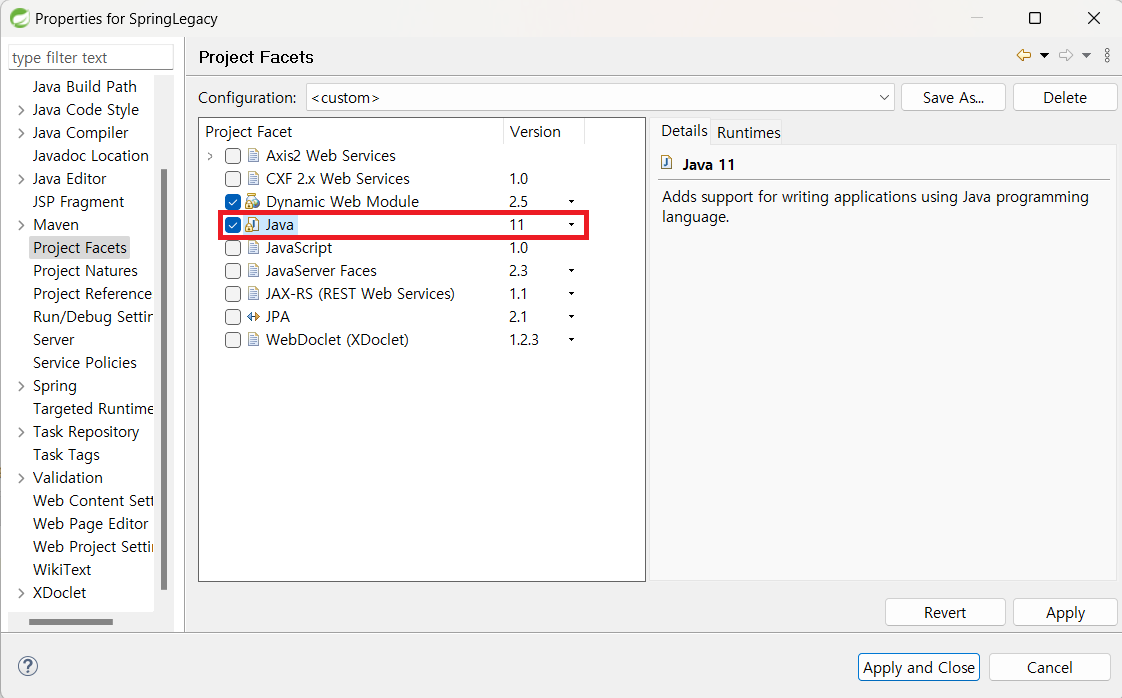

2. Propterties -> Project Facets
